MOSFET Trigger Switch Module with Heat Sink (400 watt load, 5-36V)
energy intelligence trigger swutch module with heat sink

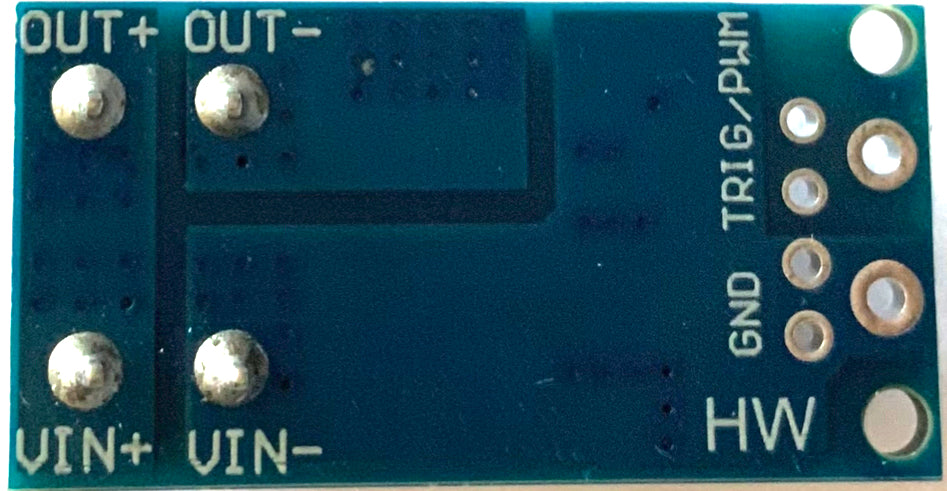

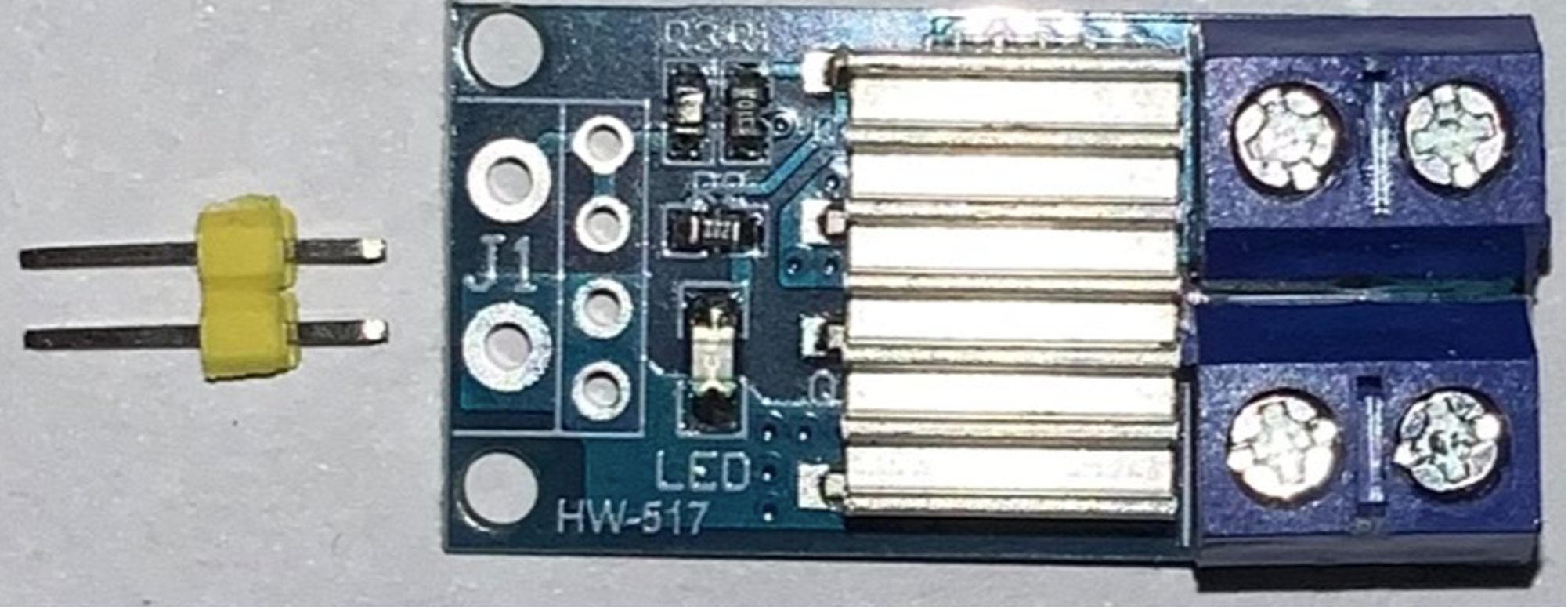

image showing trigger switch module with heat sink
Image showing trigger switch module with heat sink
  • Load image into Gallery viewer, energy intelligence trigger swutch module with heat sink
  • Load image into Gallery viewer, image showing trigger switch module with heat sink
  • Load image into Gallery viewer, Image showing trigger switch module with heat sink

MOSFET Trigger Switch Module with Heat Sink (400 watt load, 5-36V)

Vendor
Energy Intelligence Pvt. Ltd.
Regular price
Rs. 259.00
Sale price
Rs. 259.00
Regular price
Sold out
Unit price
per
Tax included. Shipping over ₹2500 Free. Else calculated at checkout.

5-36V MOSFET TRIGGER switch MODULE

This module is used to power devices like DC motors, light bulbs, robotic arm , robotic wheel drive DC motors, heating elements, solar charger controller,  Li-Ion battery packs switching on/off, LED display boards and any similar DC application of up to 36 volt.

This module can be used as ON/OFF static SWITCH or can be PWM controlled . The trigger signal or PWM signal can we of 3.3 -20 V serving any logic level either coming from CMOS or TTL logic from micro-controllers or any other controlling IC or transistor.

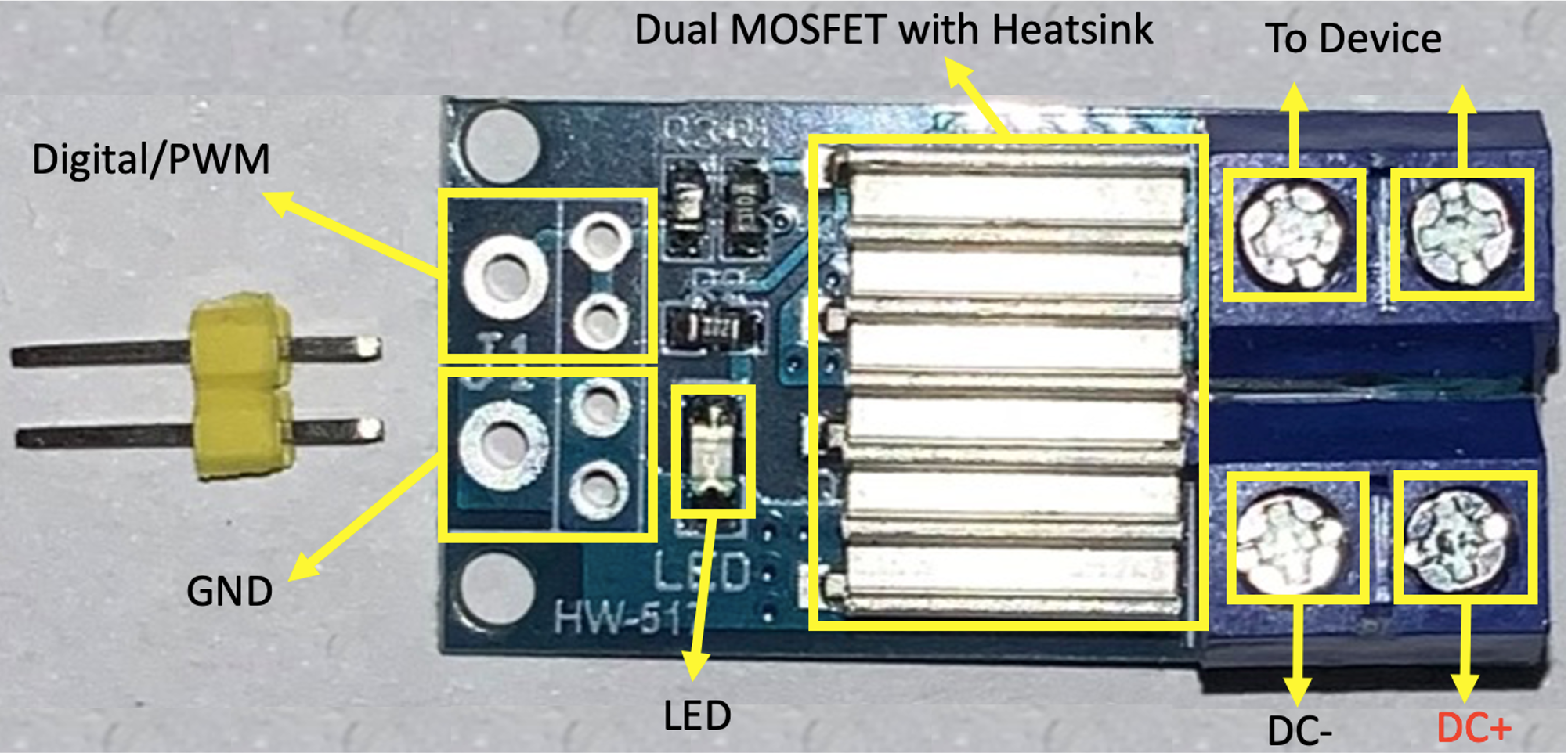

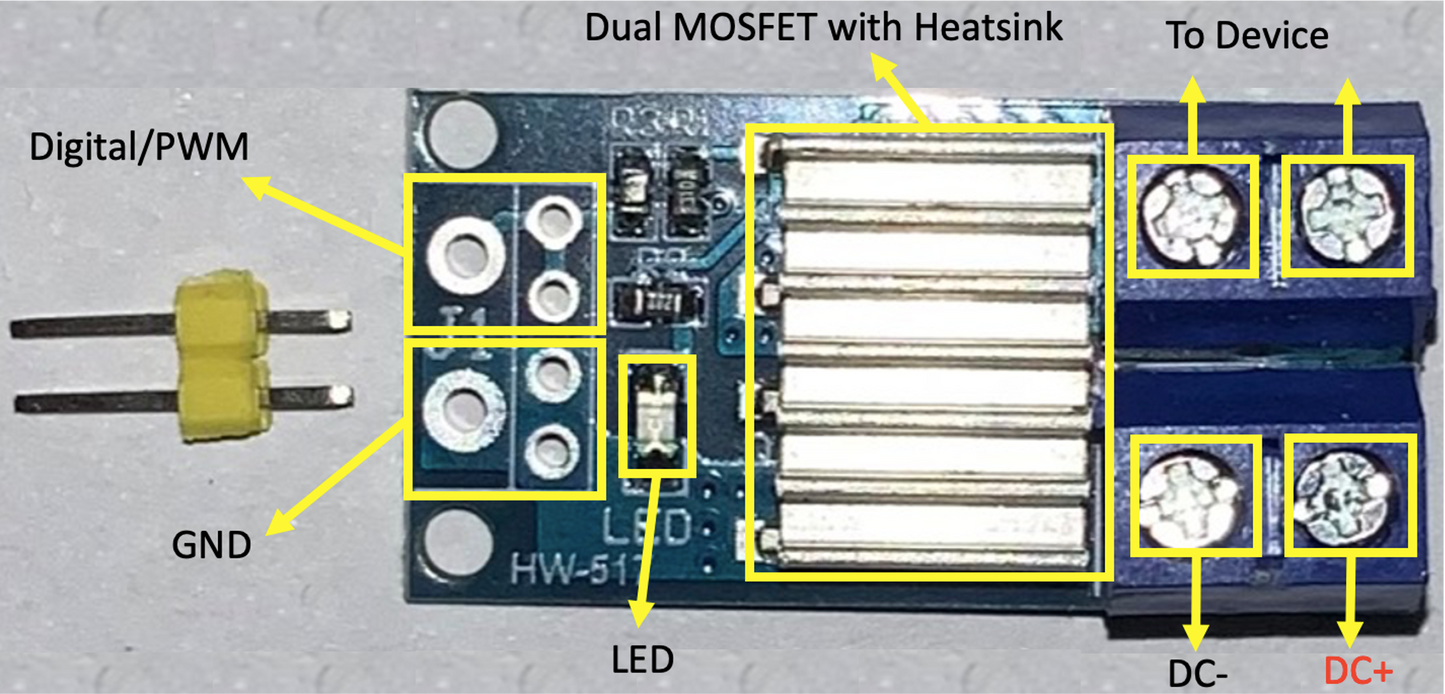

The module has two low Resistance N Channel MOSFET in parallel along with integrated heat sink to ensure maximum constant current of 15A and up to 400W at a high ambient temperature of 50 deg C suitable for tropical climate like India. The module has SMD LED which shows the ON/OFF condition based on the input trigger.

Size: 34 x 17 x 12 mm
Weight: ~11 grams with Heat Sink
Operating Temperature: -10 to + 60 Deg C with full load of 15 Amp and 400W , -10 to +75 Deg C with half load.


Note:  All modules are individually tested by Energy Intelligence team before dispatch.
