Product Description:
The Industrial/Medical Grade 5V UPS for Raspberry Pi is a high-quality uninterruptible power supply (UPS) designed for use with the Raspberry Pi computer. It is an ideal solution for industries and medical applications that require stable and reliable power supply. This UPS provides continuous power to your Raspberry Pi even during power outages or fluctuations, preventing and interruption/deviation, data loss and hardware damage. It also comes with a robust enclosure that protects your Raspberry Pi from harsh industrial or medical environments.
Key Features:
- Provides continuous power to your Raspberry Pi during power outages or fluctuations
- Robust enclosure that protects your Raspberry Pi from harsh industrial or medical environments
- Easy to install and use

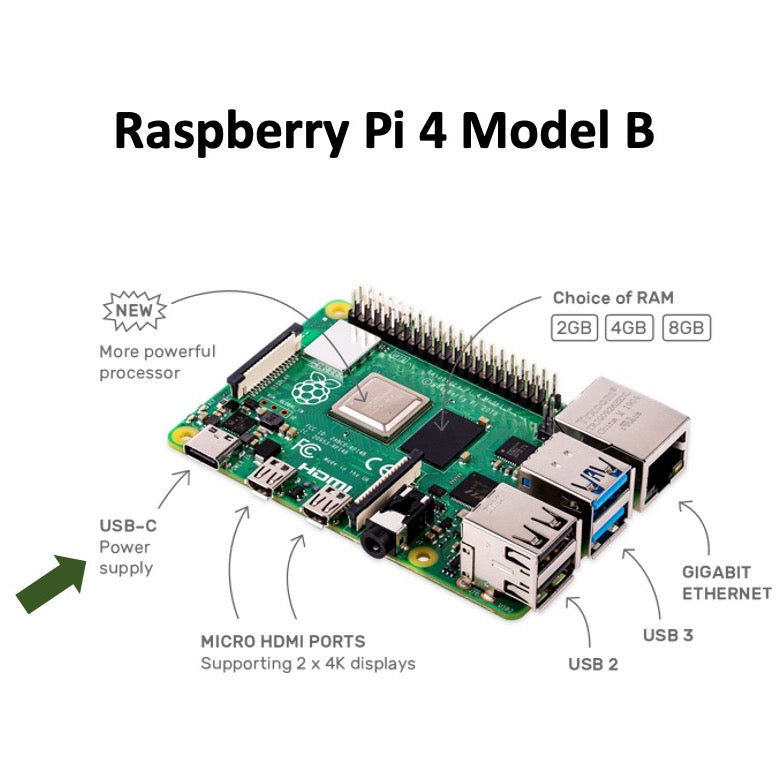

- Compatible with Raspberry Pi 4 with USB-C power supply
- Application specific Patented Pending charging and discharging for long battery life
- The only backup device with Electric Vehicle grade cells for longer life, enhanced safety and 3 years of warranty (including battery)
Specifications:
The Industrial/Medical Grade UPS for Raspberry Pi is designed with the following specifications:
- Input Voltage: AC 100-240V 50/60Hz
- Output Voltage: DC 5V 3A
- Battery Capacity: 18650 x 3, 3.7V, 7800 mAH
- Battery Charging Time: 6 hours
- Backup Time: 3-4 hours (Pi 4B). Actual time will vary depending on load in Raspberry USB ports
- Operating Temperature: -10°C to 50°C
- Enclosure Material: Alloy Steel
- Size: 112mm x 62mm x 46mm
- Weight: 0.3kg

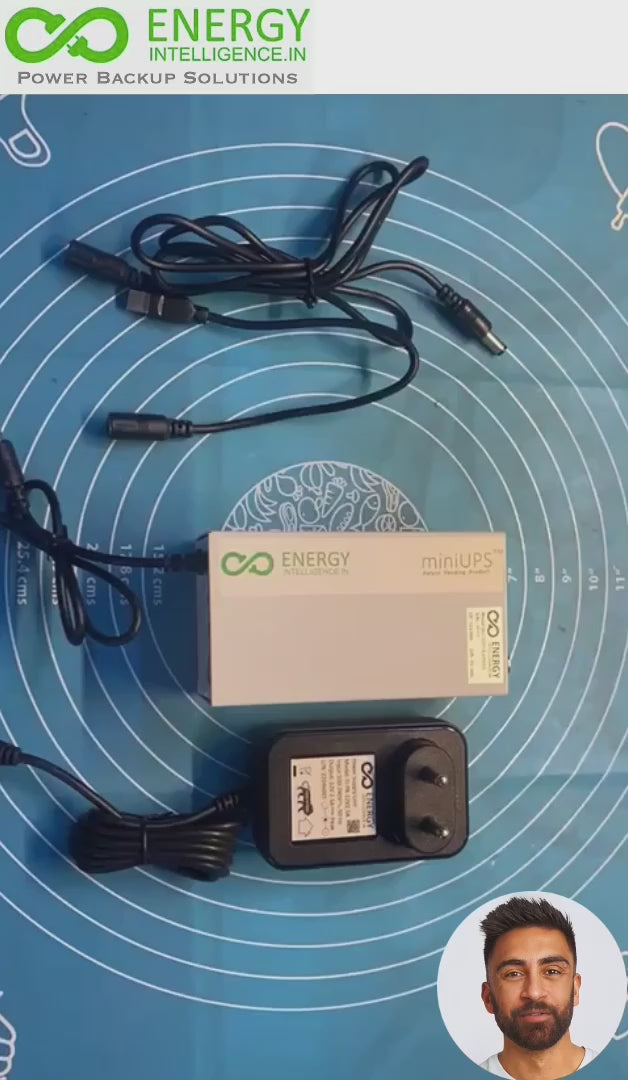

Package Contents:
The Industrial/Medical Grade UPS for Raspberry Pi comes with the following items:
- 1 x UPS
- 1 x DC barrel to USB-C bridging cable
- 1 x 1 meter extension cable
- 1 x Power Adapter
Installation:
Installing the Industrial/Medical Grade UPS for Raspberry Pi is easy. Simply follow these steps:
- Connect the Raspberry Pi to the UPS using the included USB-C cable adapter. Use extension cable if needed
- Connect the power adapter to the UPS and plug it into a power outlet.
- Turn on the power switch on the UPS board.
Usage:
Once the Industrial/Medical Grade UPS for Raspberry Pi is installed, it will provide continuous power to your Raspberry Pi even during power outages or fluctuations.
Safety Information:
The Industrial/Medical Grade UPS for Raspberry Pi is designed with safety in mind. It has built-in protection against over-voltage, under-voltage, over-current, and short-circuit. However, please follow these guidelines to ensure safe usage:
- Do not expose the UPS to direct fluids, high moisture or extreme temperatures.
- Do not attempt to disassemble or repair the UPS yourself.
- Do not use the UPS with any device other than the Raspberry Pi.
- Do not use the UPS with any device that requires more than 5V/4A of power.
The Industrial/Medical Grade UPS for Raspberry Pi is a high-quality uninterruptible power supply that provides continuous power to your Raspberry Pi even during power outages or fluctuations. It is an ideal solution for industries and medical applications that require stable and reliable power supply. With a robust enclosure and easy installation, the Industrial/Medical Grade UPS for Raspberry Pi is a must-have accessory for any Raspberry Pi system.
If you have any questions about your configuration, please contact us hello@energyintelligence.in
